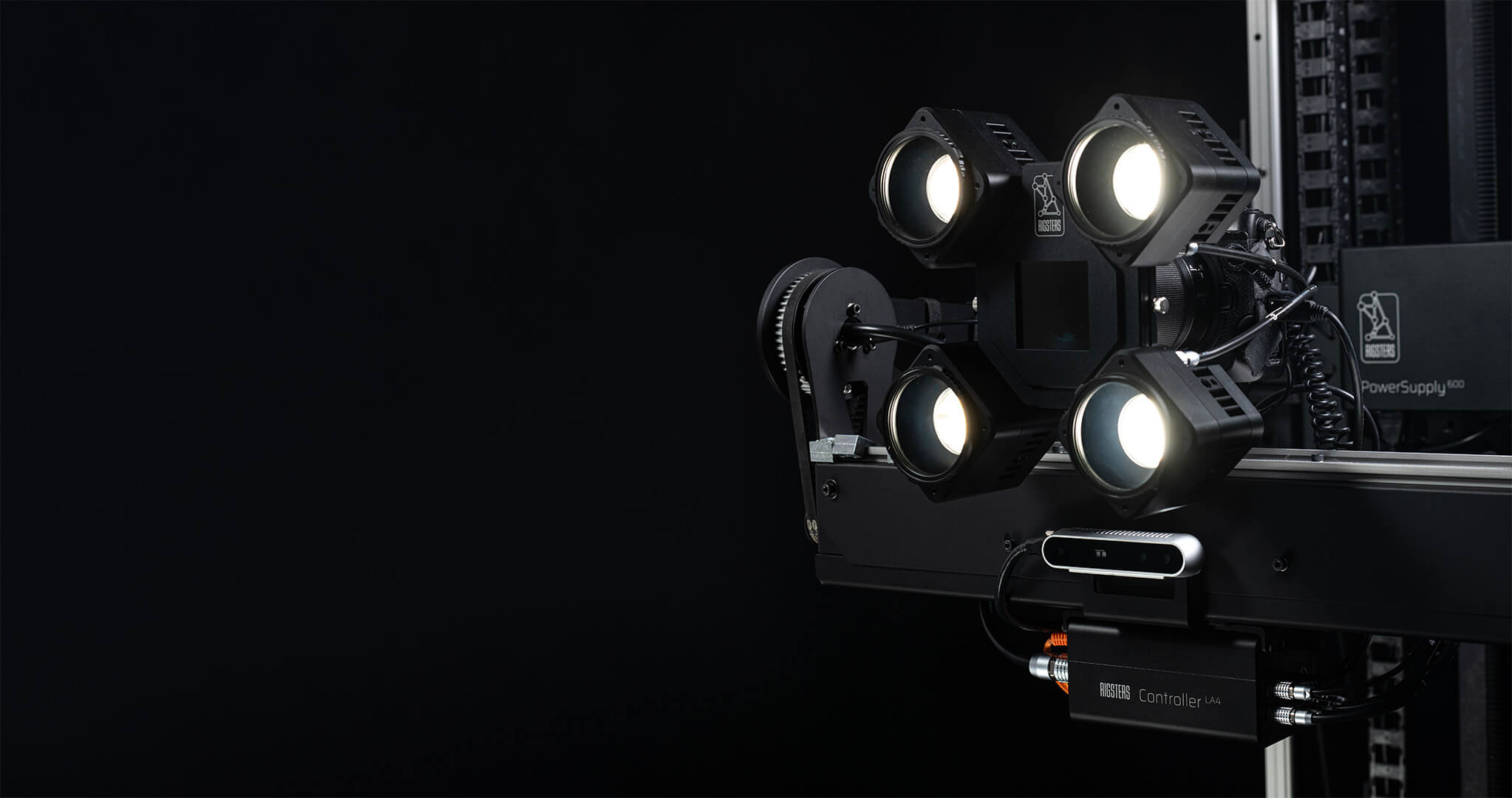

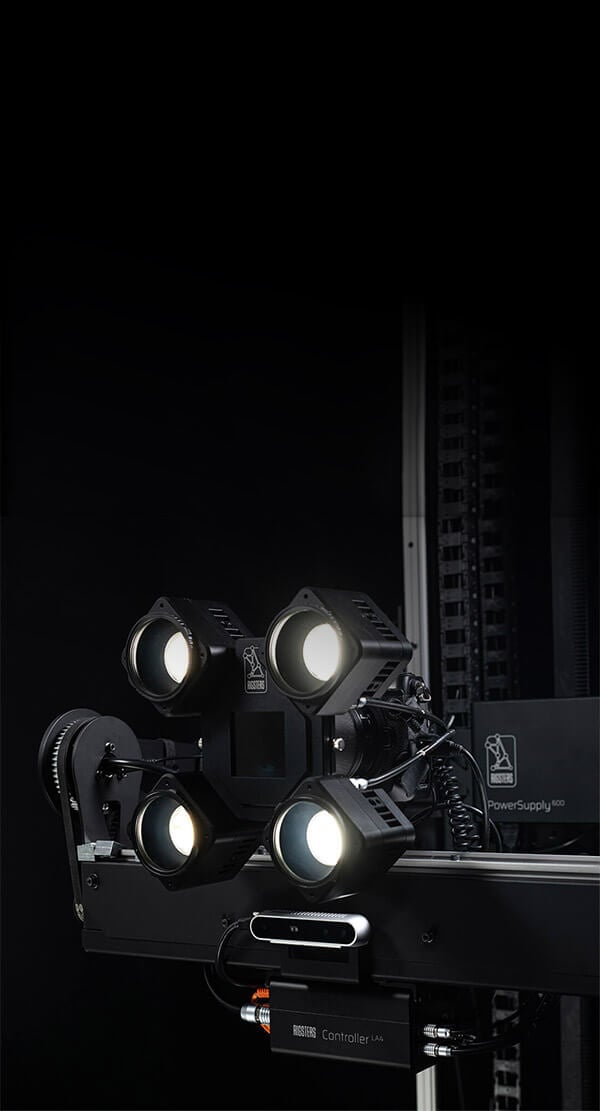

LightArray by Rigsters
Precision Flash LED Lighting
LightArray by Rigsters enables controlled light sequence capture with Flash LEDs for detailed photometric data. It allows the extraction of PBR texture maps, capturing high-frequency surface details and reflectivity properties while minimizing manual post-processing.
Controller
The constant current flicker-free driver,
offering extensive IO options
for light and camera control.
FlashLED
Featuring a COB LED with a CRI
of 95 and a TLCI 99
alongside a 60° aspherical lens
ensuring uniform beam distribution.
Polarizing Filters
Electro-optical or motorized polarizer
add-ons enable rapid polarization state
changes during capture.
Power Supply
- Input: 110–240 V, up to 6 A
- Output: 48 V, 12 A
- Aux Ports: 48 V, 4 A
LightArray by Rigsters
Precision Flash LED Lighting
LightArray by Rigsters enables controlled light sequence capture with Flash LEDs for detailed photometric data. It allows the extraction of PBR texture maps, capturing high-frequency surface details and reflectivity properties while minimizing manual post-processing.
LIGHT ARRAY KIT
Max Power
600 W
x4 FlashLED Weight
1.3 KG
CRI / TLCI
95 / 99
Color Temperature
5000 K
FlashLED Trigger Modes
Sequenced / Single
Dynamic Cross-Polarization
Electronic or Motorized
Mount
Lens-mountable
Remote Control
Rigsters Light Controller
Key Features
LightArray provides precise individual FlashLED trigger sequencing and supports rapid switching between polarization states – either electronic or motorized – enabling fast capture of cross and parallel-polarized images. It integrates camera power, synchronization, triggering, and tethering, ensuring seamless coordination between lighting and imaging. Designed to work fully with Arago or as a stand-alone kit, multiple LightArray units can be daisy-chained for complex, multi-directional lighting setups. Data transfer over LAN further enhances workflow efficiency.
FlashLED single unit Specs
COB LED
CRI 95, TLCI 99
LUX
10.500 lx
Optics
60° aspherical lens
Cooling
Active (Noctua)
Filter Thread
58mm front mount
Dimensions (mm)
65 x 65 x 65 mm
Weight (g)
290 g
Operating Modes
Flash Mode: Individually addressed LEDs deliver up to 250W output with pulse durations adjustable from 50 µs to 100 ms (approximately 1/20,000 s to 1/10 s)
Model Light: This mode provides focus assistance and a polarization-state preview.
Polarization Modules
Electro-Optical Polarizer
Filter Type
LC-Tec FPM
Dimensions (mm)
50.8 x 50.8 mm
Response Time
≤30 ms
Transmittance
≥43 %
Number of States
2
Motorized Polarizer (coming soon)
Filter Size
≤77 mm
Filter Type
Standard Threaded
Actuation Speed
≤1 s
Rigsters Controller LA4
Max Input Power
600 W (48 V, 12 A)
Driver Type
Flicker-free / no PWM
LED Ports
4
USB 3.0 (5 Gbps)
Camera tethering
Camera Trigger
3.5 mm Jack
Camera Power
Nikon / Canon / Sony
Shutter Sync/Response
3.5 mm Jack to PC-sync
Polarizer Control
Electrical / Motorized
Remote Input Trigger
3.5 mm Jack
LAN (1 Gbps)
Data transfer and Communication
Software Support
Rigsters Controller
Arago Control
Full Support
FLashLED Light Modes
Sequenced / Single / Model
Light Output Control
Shutter Controlled / Manual
Camera Tethering
Nikon / Canon / Sony
Polarization State Control
Sequenced / ON-OFF
Photometric Stereo
Supported Workflows
MXR / Inciprocal
