Main Unit Dimensions


Length: 260cm
Width: 61cm
Height: 192cm


Travel Distance

  • X (horizontal) axis: 130cm
  • Y (vertical) axis: 137cm

Weight: ~74kg

Payload capacity of the camera tilt component: up to 10kg



Main Unit Dimensions – Folded


Length: 206cm
Width: 61cm
Height: 42cm


Turntable Specifications


Length: 120cm
Width: 54cm
Height: 20cm
Weight: ~18 kg

Load capacity: max. 80 kg. The weight of an item should be evenly distributed and placed in the centre of the turntable.

Travel distance (side-to-side): 72cm


Turntable Height



The Turntable module consists of three tiers with heights specified as follows:

  • Base Turntable Height: 0cm (world space defined by Arago Control software).
  • Extension Sections: Each extension section comprises 4 rods and a round plate, resulting in a height of 30cm per section.
  • Combined Extension Sections: When both extension sections are combined, the total height adds up to 60cm.

Turntable Diameter



The Turntable system features different diameters at its various tiers:

  • Base Turntable Plate: The base turntable plate has a diameter of 50cm.
  • Height Extension Turntable Plates: The height extension turntable plates have a diameter of 20cm.

Turntable Speed



The speed of rotation and side-to-side movement of the turntable can be regulated in Arago Control. The maximum and the minimum speed are as follows:

  • Max. rotation speed: 2.3 rpm (1 full rotation in 26 seconds)
  • Min. rotation speed: 0.23 rpm (1 full rotation in 260 seconds)
  • Max. side-to-side movement speed: 0.048 m/s
  • Min. side-to-side movement speed: 0.005 m/s

Transportation Case Dimensions


Length: 230cm

Width: 74cm
Height: 56cm
Weight: 50kg

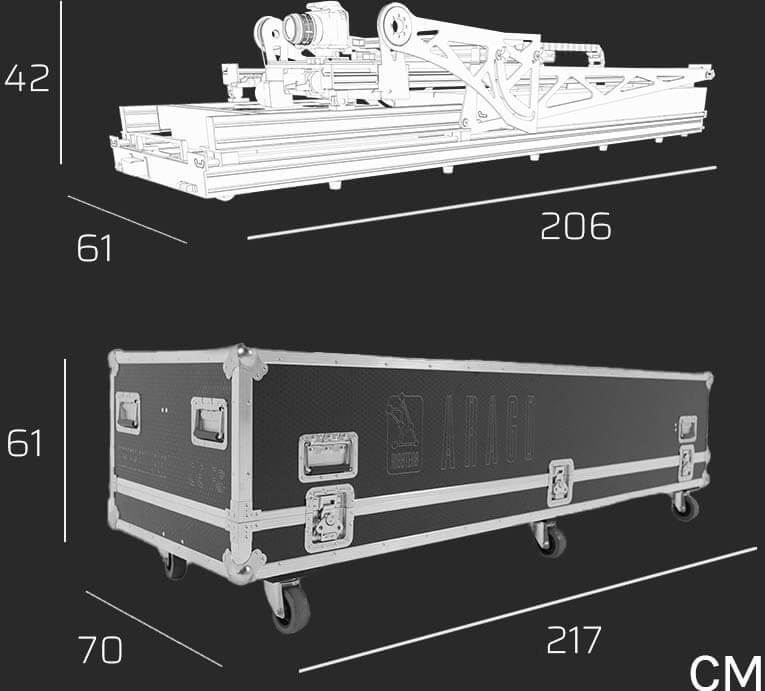

arago folded dimensions 2 2

The  total weight of the system including turntable, transportation case, and auxiliary components is 145kg.
