Flash LED Assembly

You are here:

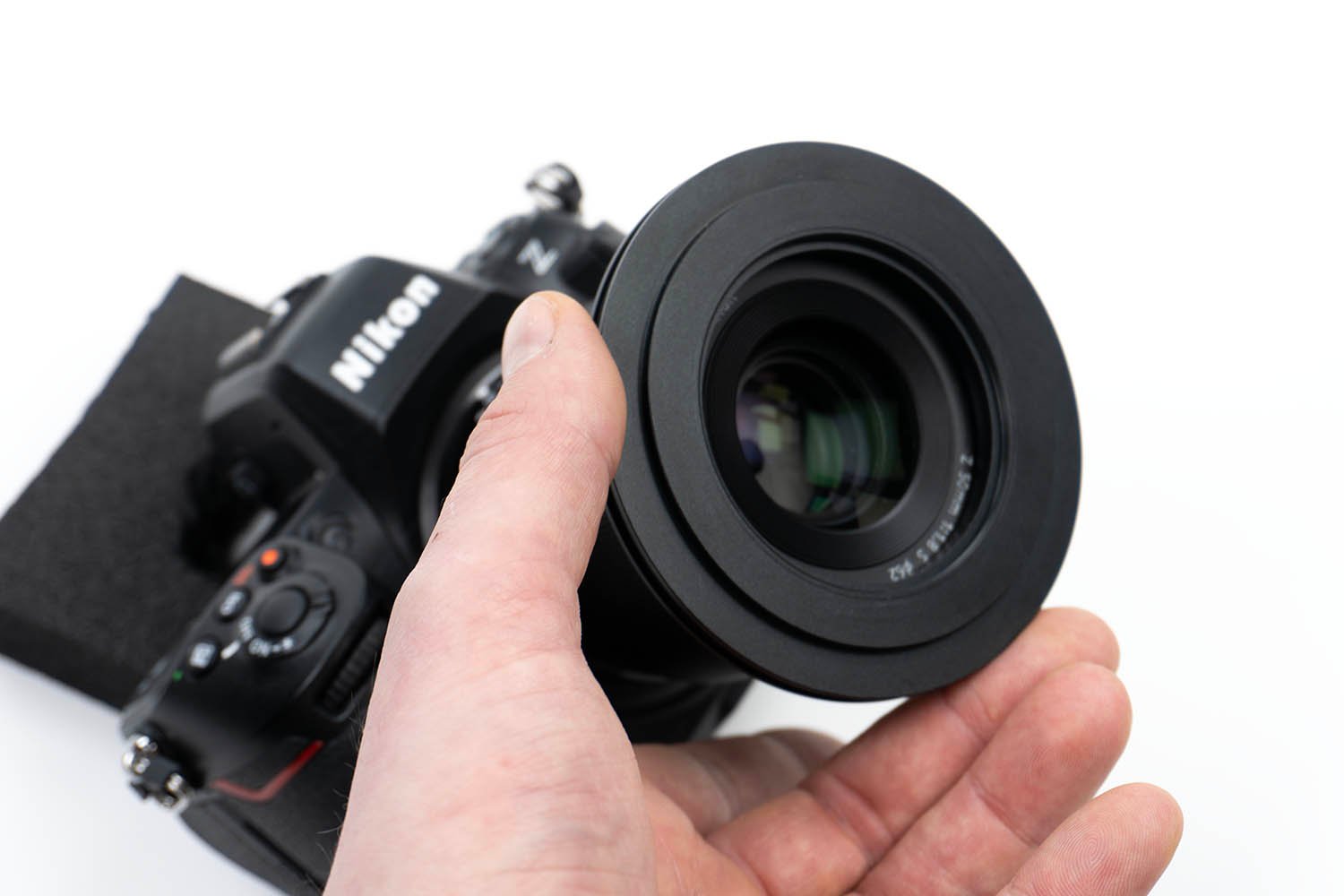

  1. Attach the Lens Adapter Ring:

    Secure the appropriate camera lens adapter ring onto your lens by turning it clockwise until it fits firmly.LA4 lens adapter

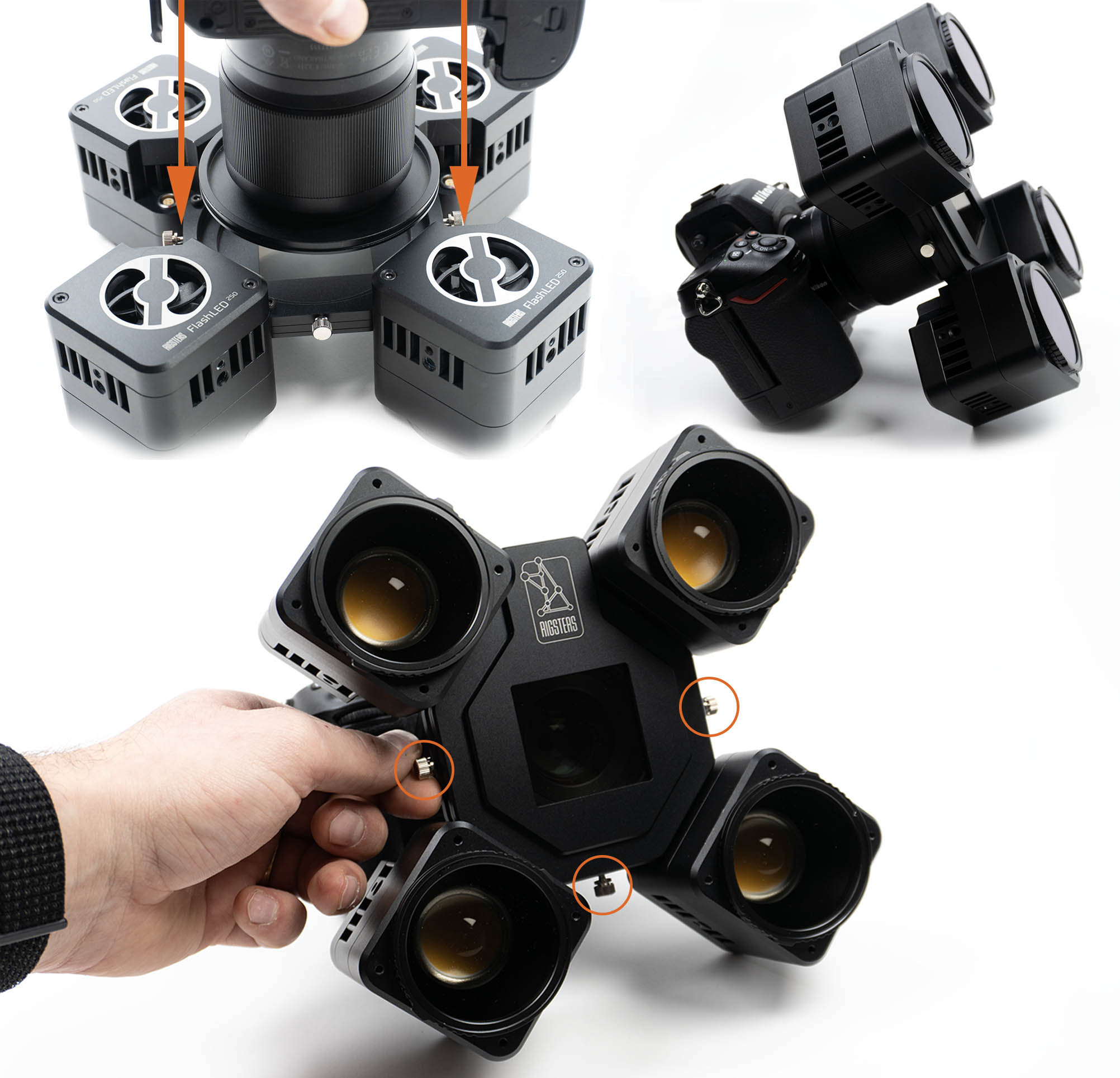

  2. Mount the Flash LED Main Unit:

    Insert the mounted adapter ring into the rear interface of the LightArray Flash LED unit as shown in the image. For optimal alignment between the camera and the lighting system, place both on a flat horizontal surface. Once aligned, tighten the three thumb screws on each side of the unit until fully secured.

    LA4 lens mounting

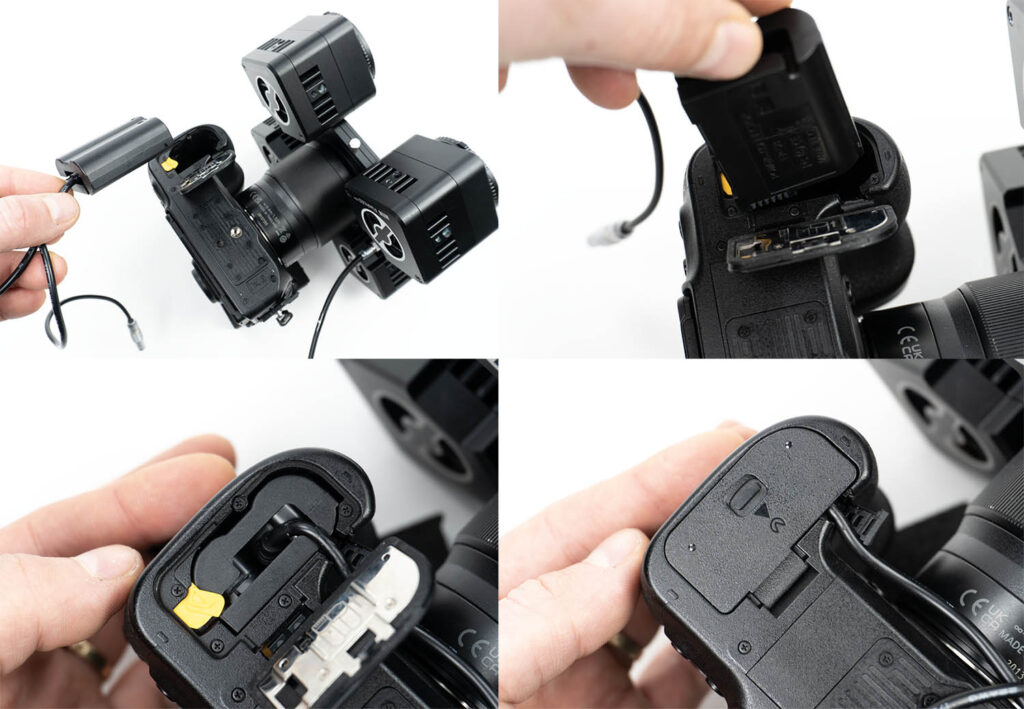

  3. Install the Dummy Battery Adapter:

    Insert the power adapter designed for your camera model. Most cameras feature a small opening in the battery compartment that allows the dummy battery cable to exit while keeping the battery door closed. Once the adapter is fully inserted, guide the cable through the opening and close the door.

    LA4 camera battery

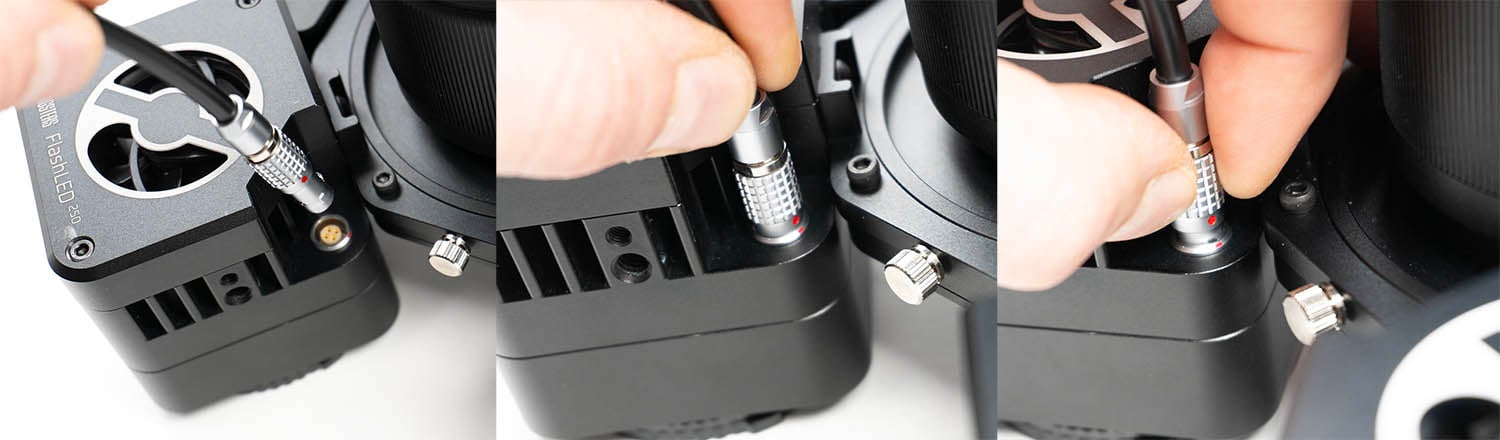

  4. Connect the Flash LED Cables:

    For each of the four Flash LED modules, align the red dots on the cable connector with the corresponding port on the back of the LED unit. Firmly press the connector until you hear a click, indicating a secure connection. To disconnect, hold the metal ring or collar and gently pull the cable out.

    LA4 LED cable

  5. Attach the Polarizer Cable:

    Similarly, connect the corresponding polarization unit cable to the back of the polarization filter module by aligning the connectors properly and ensuring a firm connection.
