System Components

This section details the contents of the LightArray kit. The numbered items below correspond to the reference images.

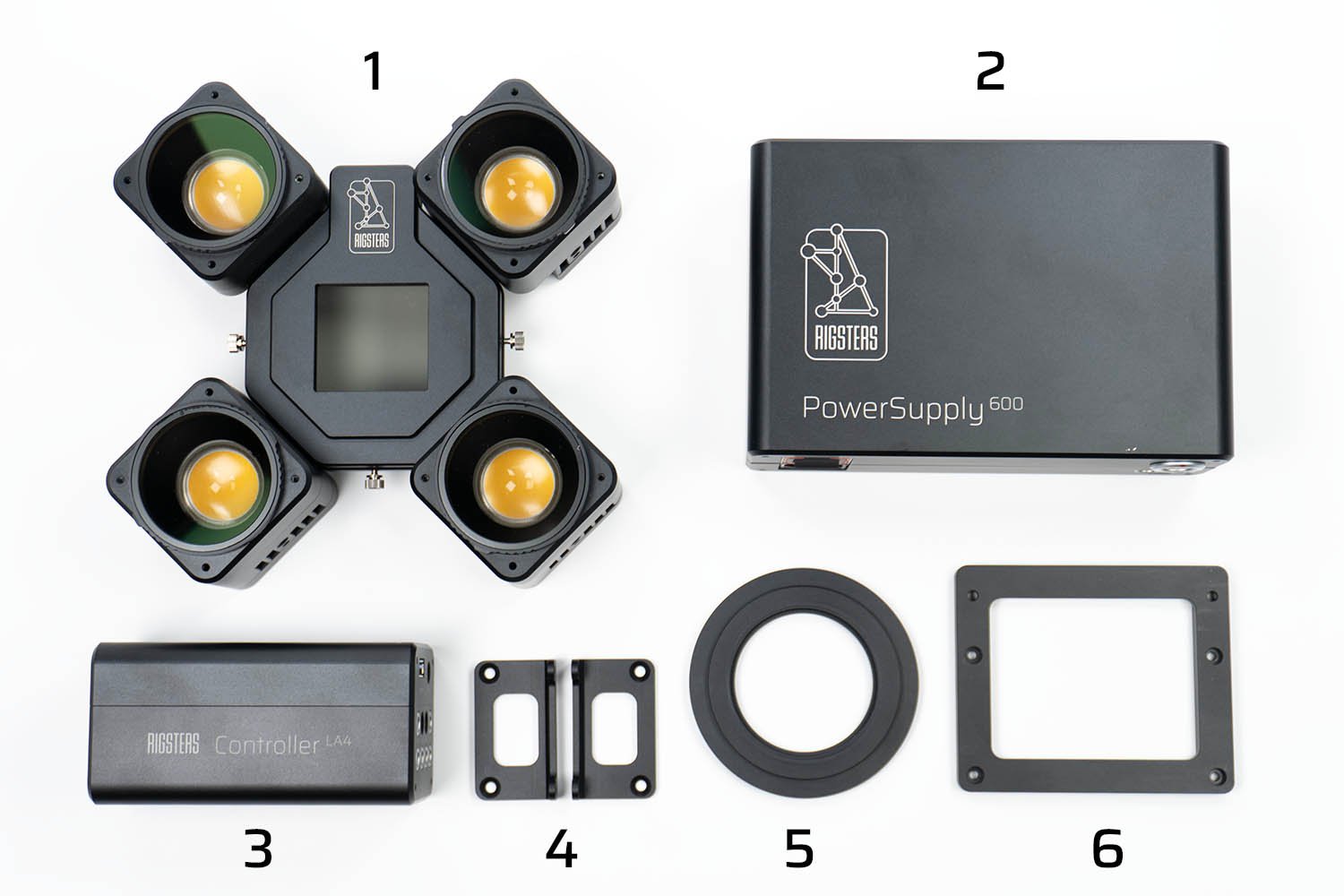

1. Main System Components

1. Main Flash LED Unit
   Consists of 4 FlashLED modules with pre-mounted polarizing filters and a choice of a polarizing add-on (Electronic or Mechanical).

2. Power Supply

3. Controller

4. Controller Mounting Brackets

5. Lens Adapter Ring(s)
   Provided in the requested size (available from 49 mm to 77 mm).

6. PSU Mounting Bracket

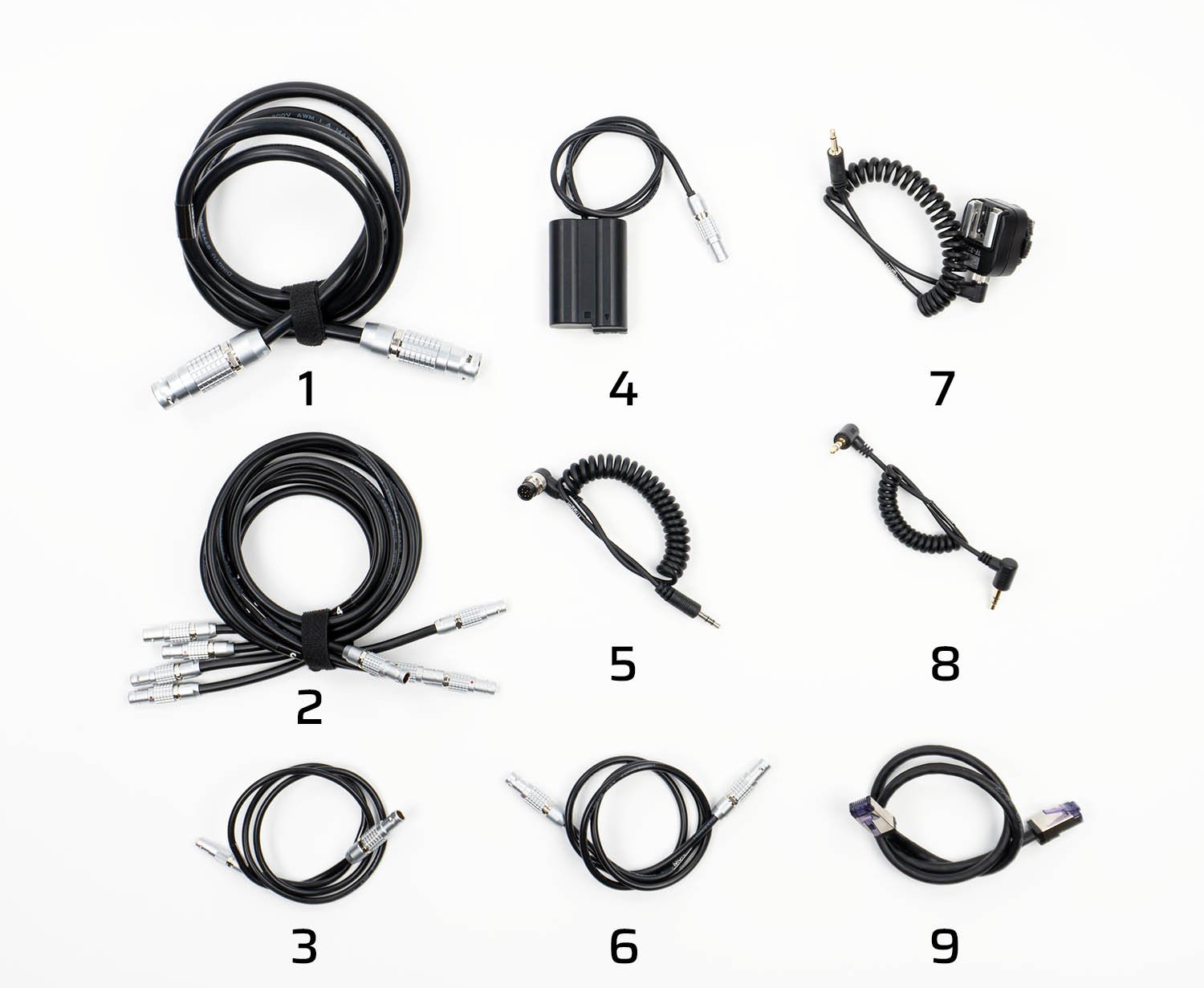

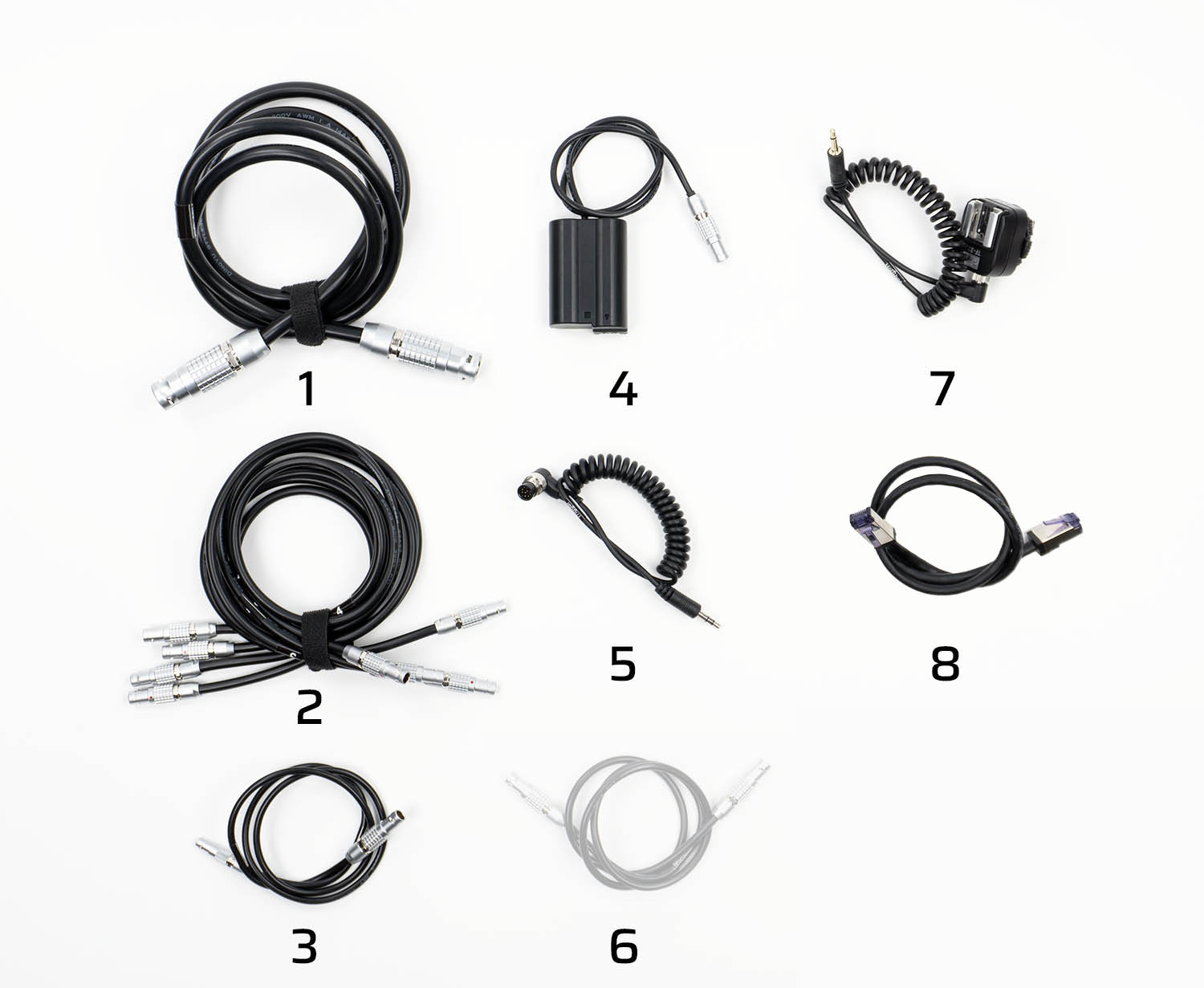

2. Cables

1. PSU-to-Controller Power Cable

2. FlashLED Cables
   Four individual cables (one per FlashLED module).

3. Electronic Polarizer Add-On Cable
   (Included if the electronic option is chosen.)

4. Dummy Battery Power Adapter
   Compatible with the camera of your choice (Canon, Nikon, Sony).

5. Shutter Release / Trigger Cable
   For the camera of your choice.

6. Motorized Polarizer Add-On Cable (Coming Soon)
   (Included if the motorized polarizer version is chosen.)

7. Hotshoe Cable
   Required for measuring camera hotshoe response times.

8. Remote Cable
   For connection to the Arago rig camera trigger port.

9. LAN Cable
   For connecting to the Arago rig LAN port.

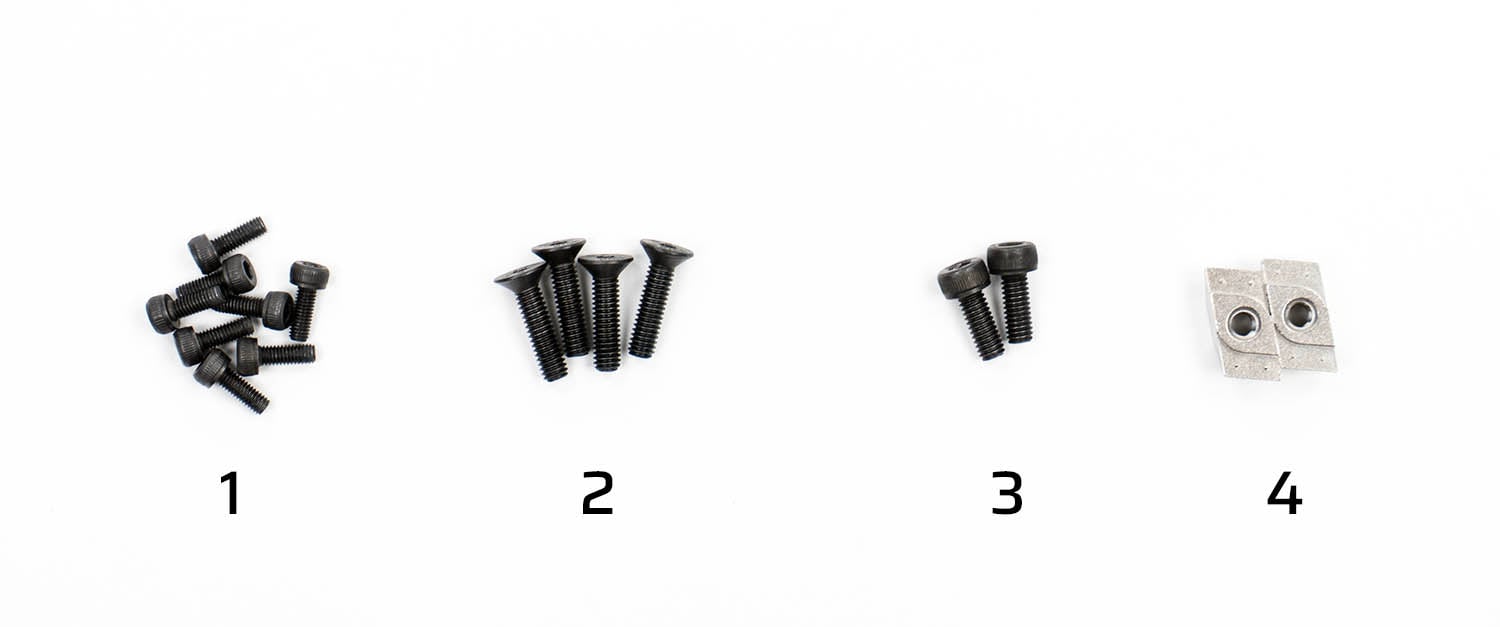

3. Mounting Screws and Nuts

1. PSU and Controller Mount Screws
   8 x M3, 8mm-long screws.

2. Controller Bracket Mount Screws
   4 x M4, 16mm-long countersink screws.

3. PSU Bracket Mount Screws
   2 x M4, 10mm-long screws.

4. PSU Bracket Mount Nuts
   2 x T-slot nuts.
