Arago Integration & Setup

1. PSU Mounting

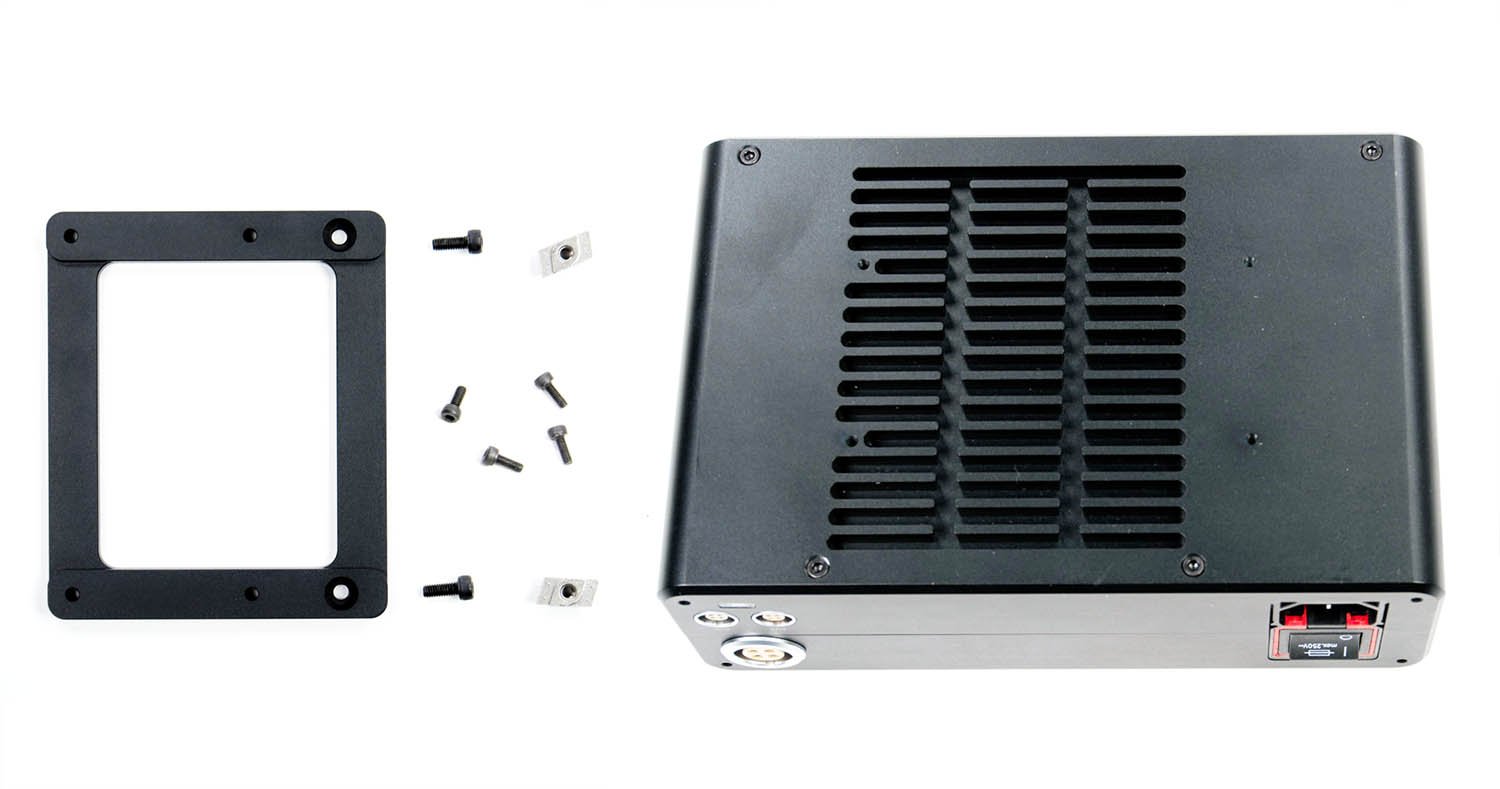

Needed Parts:

1. 1 x PSU Mounting Bracket
2. 2 x M4, 10mm-long PSU Bracket Mount Screws
3. 2 x PSU Bracket Mount T-slot Nuts
4. PSU Unit


Steps:

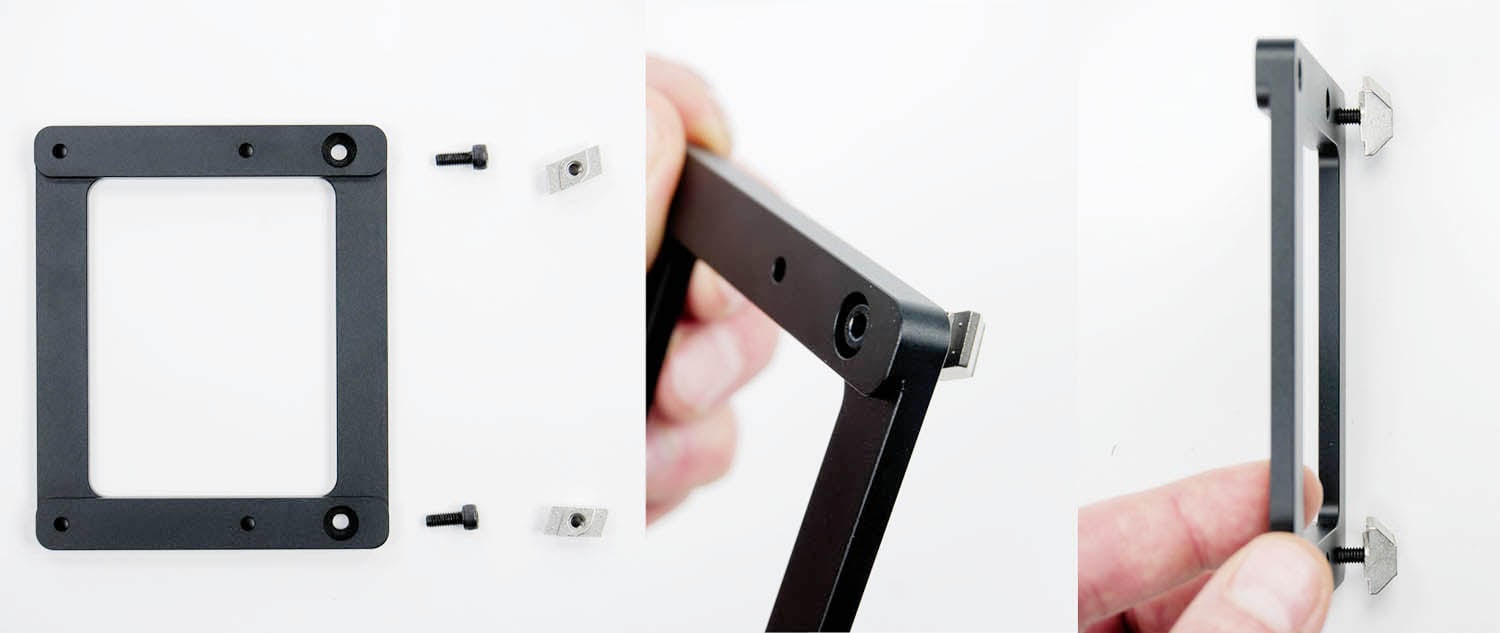

1. Pre-Mount the Bracket:

   • Insert 2 x M4, 10mm-long screws through the indicated holes in the PSU mounting bracket.
   • Slightly thread the T-slot nuts onto these screws as illustrated.


2. Attach the Bracket to Arago:

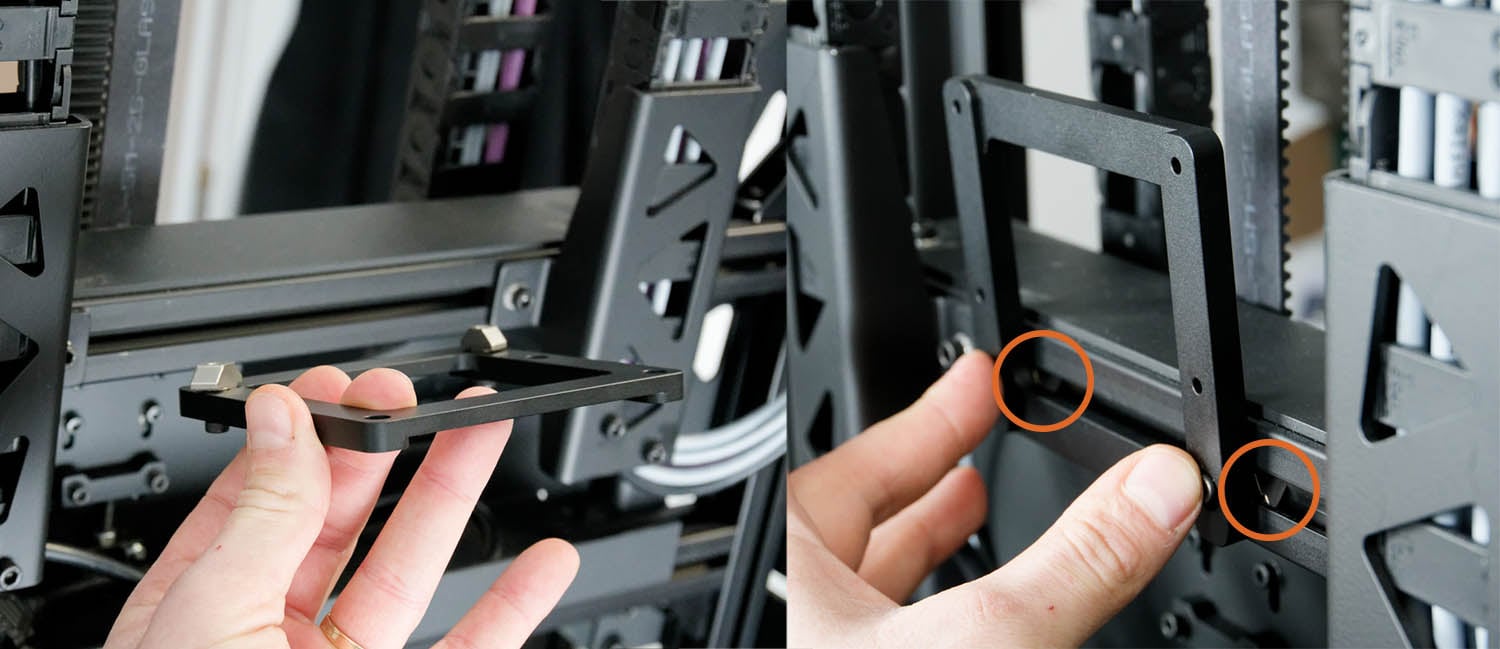

   • Align the bracket with the middle of Arago’s Y-axis carriage profile and slot it into place.

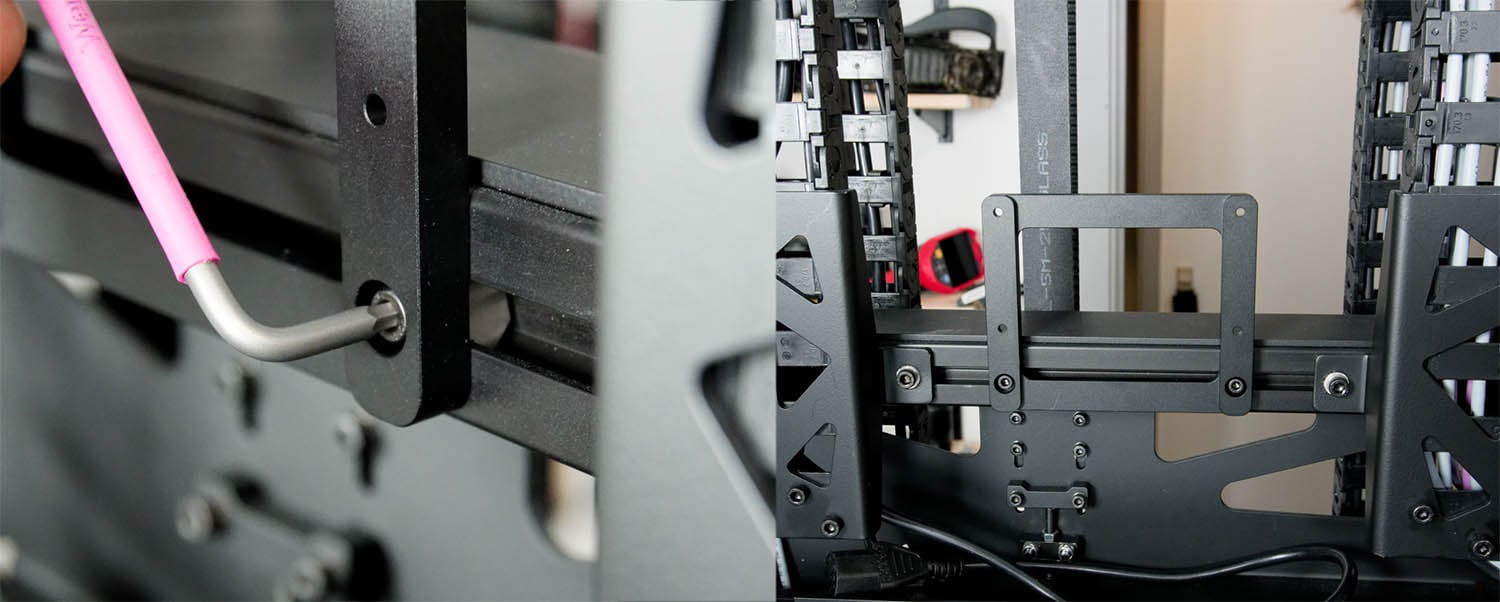

   • Begin tightening the screws using the appropriate Allen key. Ensure the T-slot nuts rotate to a vertical position inside the profile to secure the bracket. Fully tighten the screws.

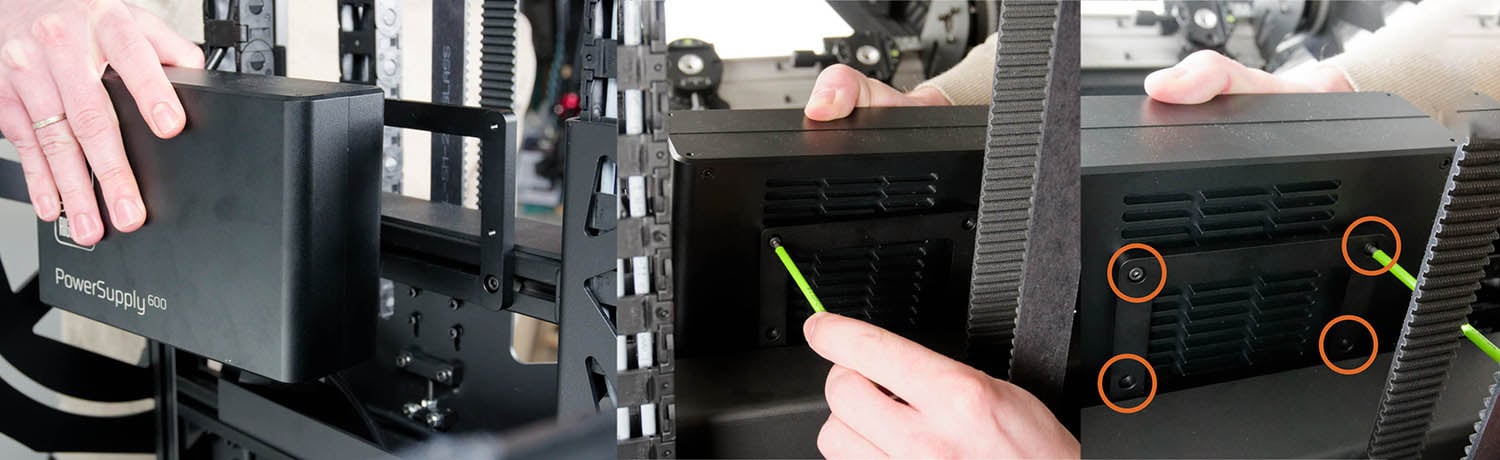

3. Mount the PSU Unit:

   • Align the back side of the PSU unit with the mounted bracket.
   • Insert and tighten 4 x M3, 8mm-long screws through the bracket into the PSU unit.


4. Connect the Power Cords:

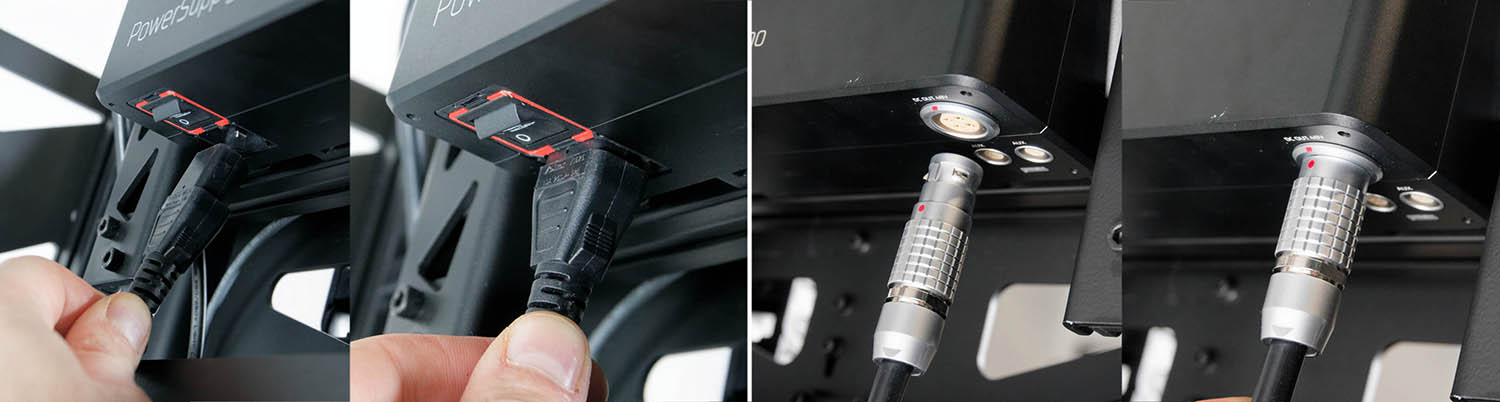

   • Attach both the input and output power cords as shown.
   • If your Arago does not have the input power cord pre-installed, refer to the provided manual for installation instructions.

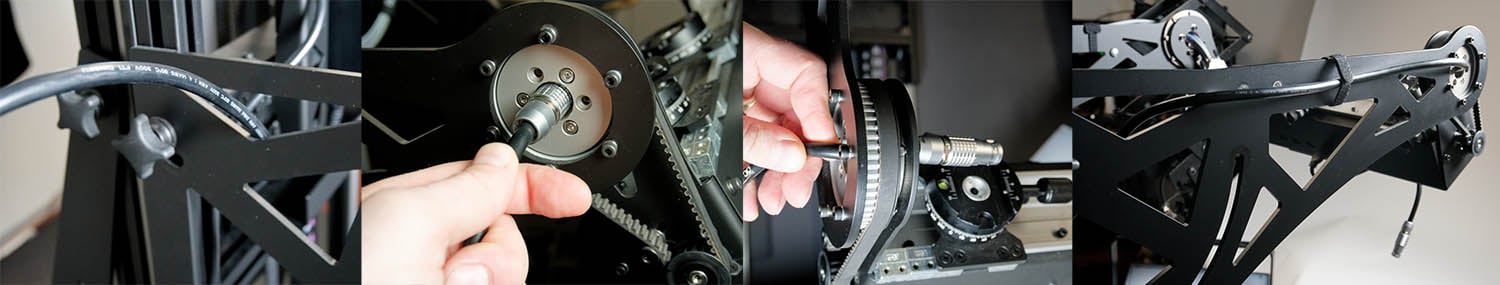

5. Cable Management:

   • Route the power output cable through the side plate on the motor side of Arago.
   • Push the cable end through the hole in the slewing ring and secure it to the side plate with a Velcro strap. Ensure the cable is taut and does not interfere with moving elements.


2. Controller Mounting

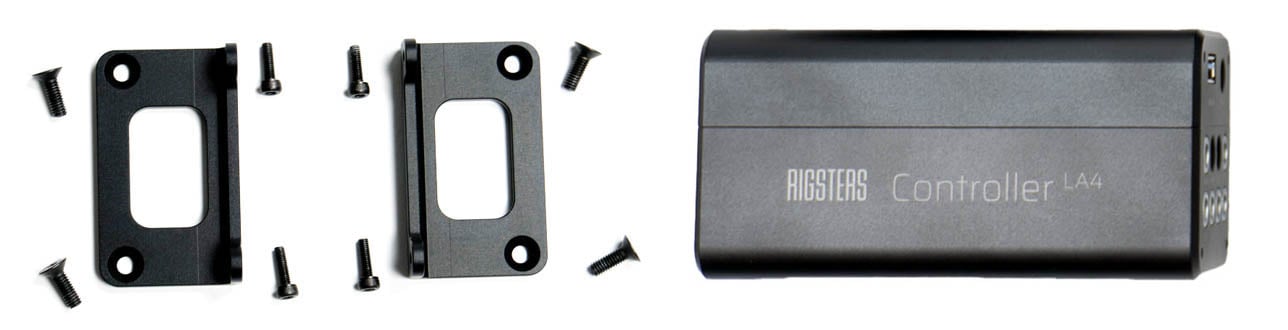

Needed Parts:

1. 2 x Controller Mounting Brackets
2. 4 x M4, 16mm-long Countersink Screws
3. 4 x M3, 8mm-long Screws
4. Controller Unit


Steps:

1. Remove Existing Bracket Screws:

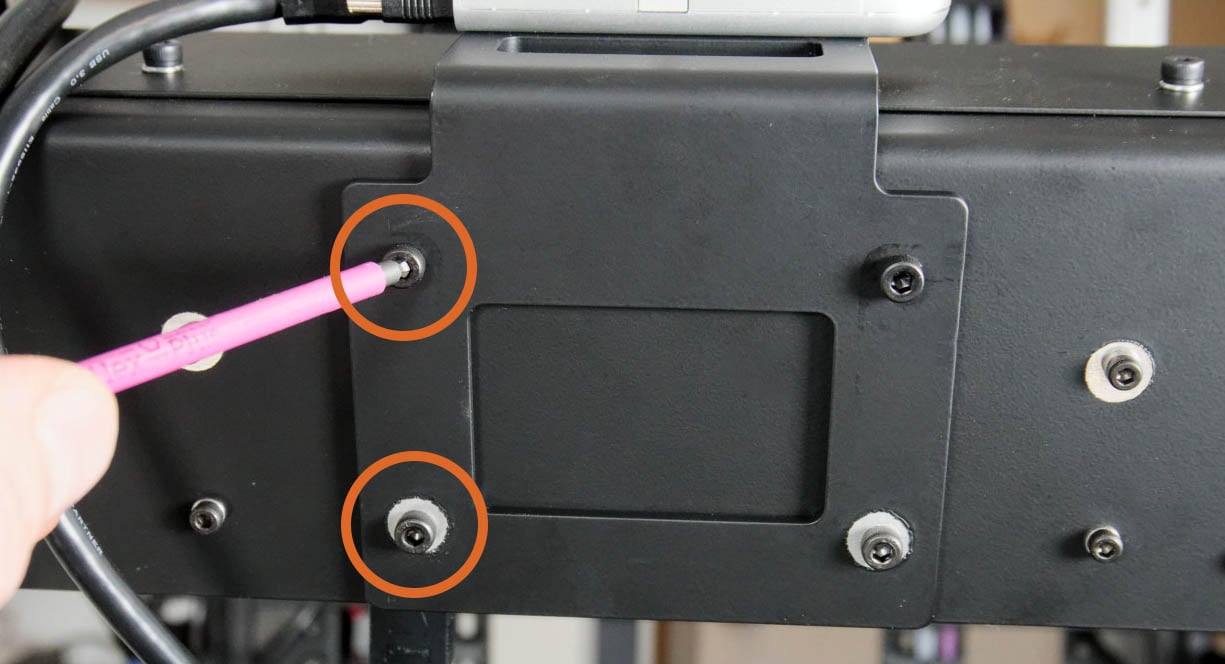

   • Remove the 2 left-hand side screws holding the pre-scanning sensor bracket located under Arago’s Tilt-head.

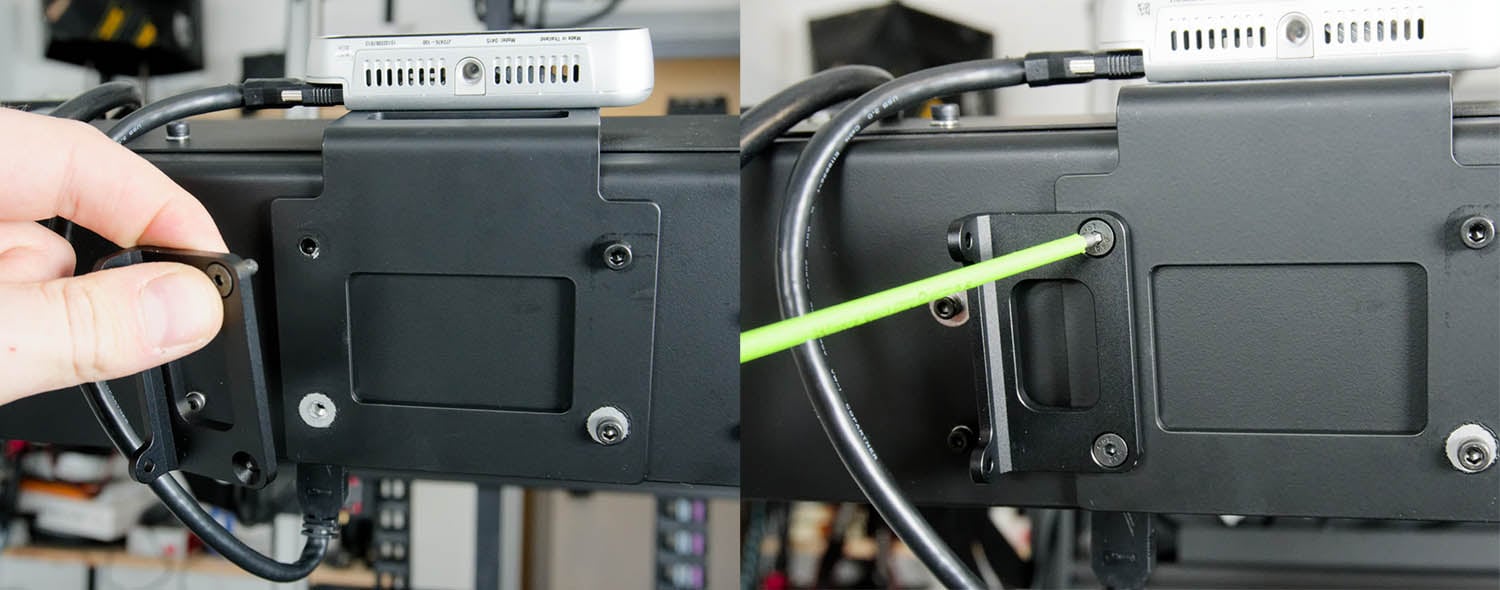

2. Mount Controller Brackets:

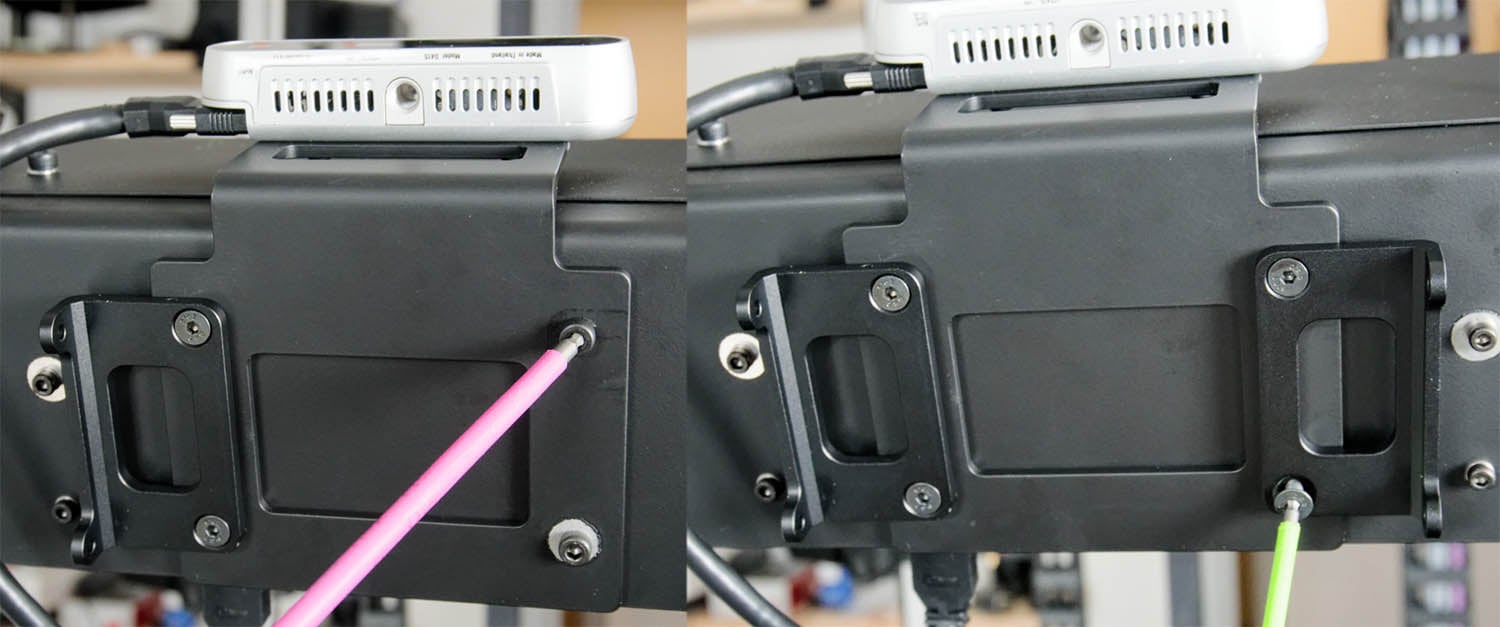

   • In the place of the removed screws, install one of the controller mounting brackets using 2 x M4, 16mm-long countersink screws, as shown in the image.

   • Repeat the process for the right-hand side.

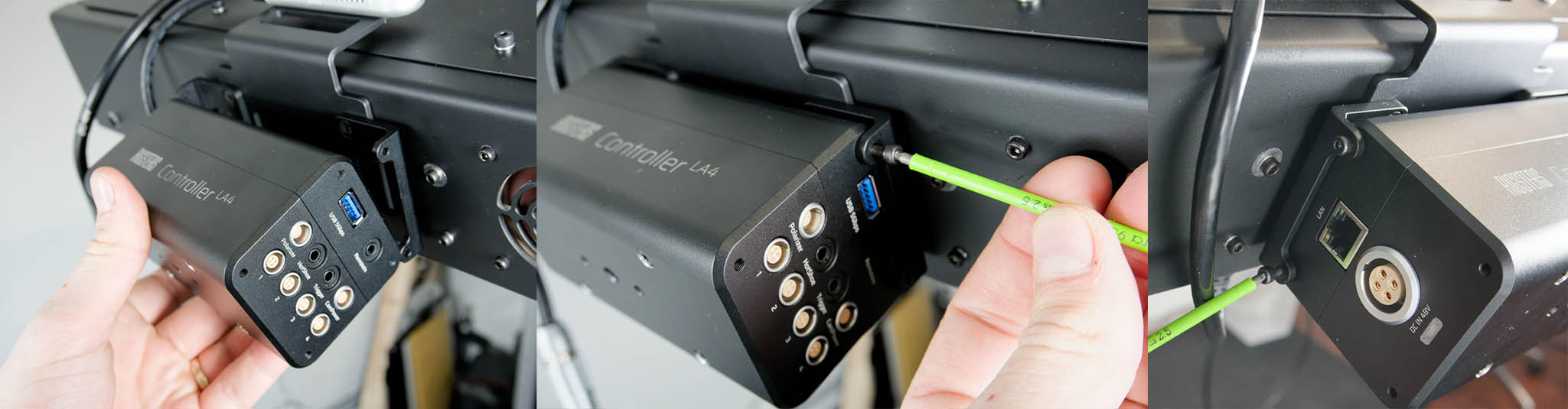

3. Install the Controller Unit:

   • Align the Controller unit with the mounted brackets in your preferred orientation.
   • Secure the Controller by fastening 4 x M3, 8mm-long screws.

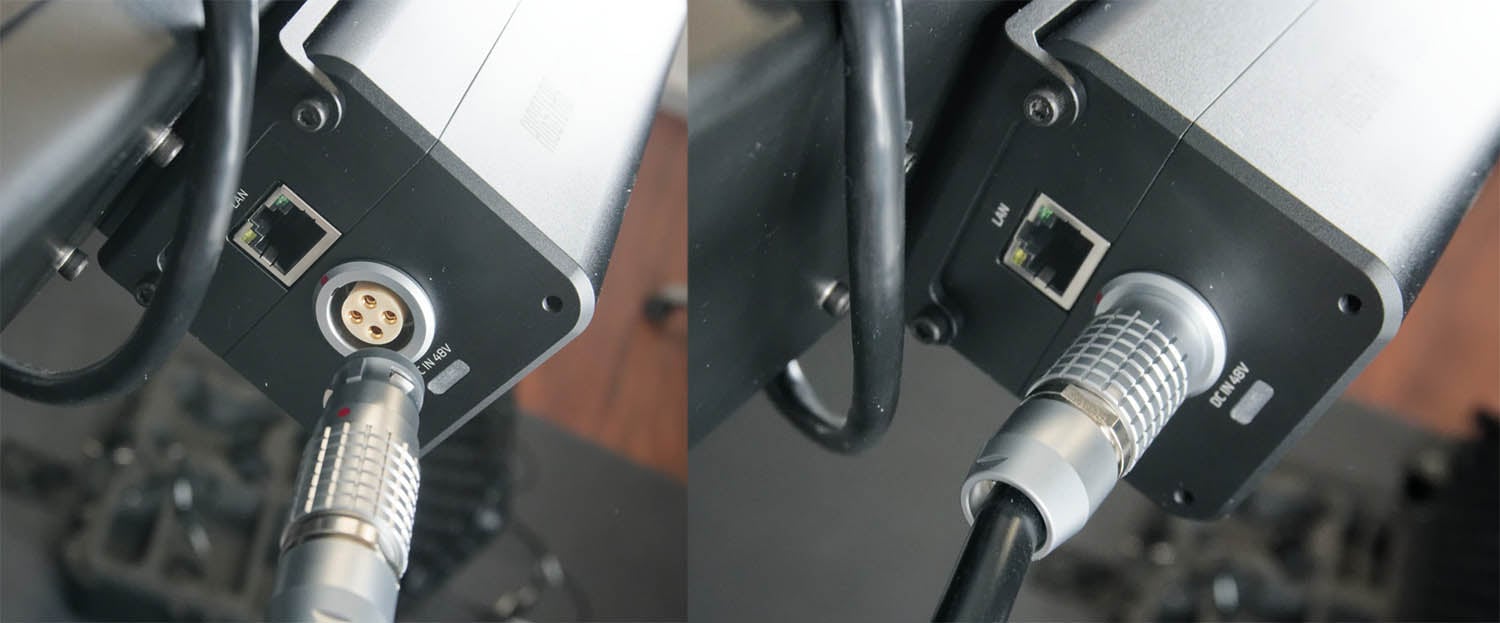

4. Connect the Power Cable:

   • Align the red orientation indicators on the power cable connector with the corresponding power input port on the Controller.
   • Push the cable in until it clicks into place.

5. Connect the LAN Cable:

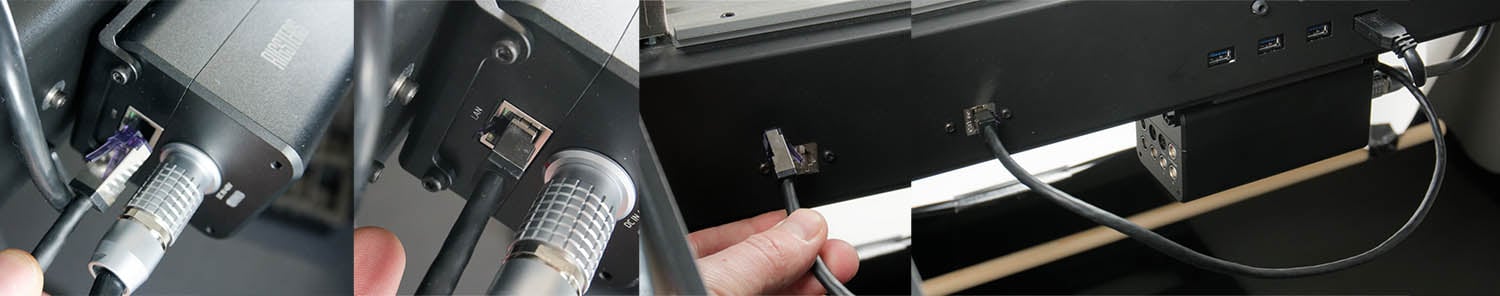

   • Attach the provided short LAN cable to the Controller LAN port, then connect the other end to the LAN port located at the back of Arago’s Tilt-head.


3. Camera Cabling

Steps:

1. Mount the Camera:

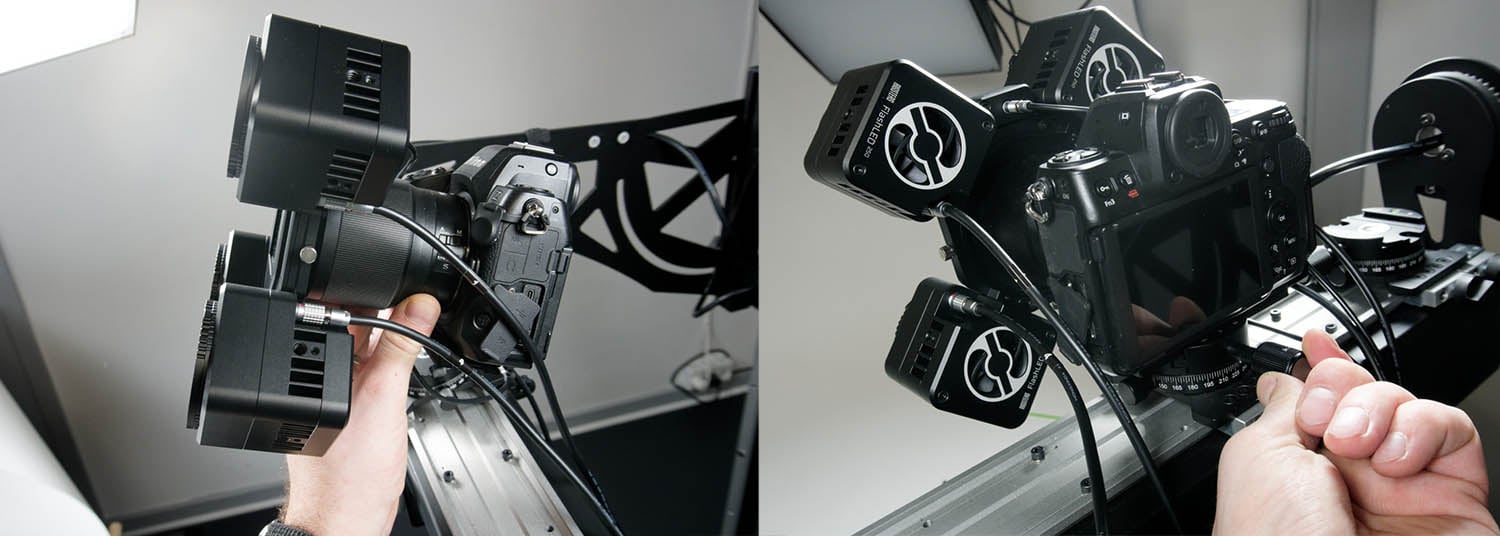

   • Secure your camera (with the attached Flash LED unit) onto Arago.
   • Ensure all cables are routed toward the back of the Tilt-head to prevent tangling.

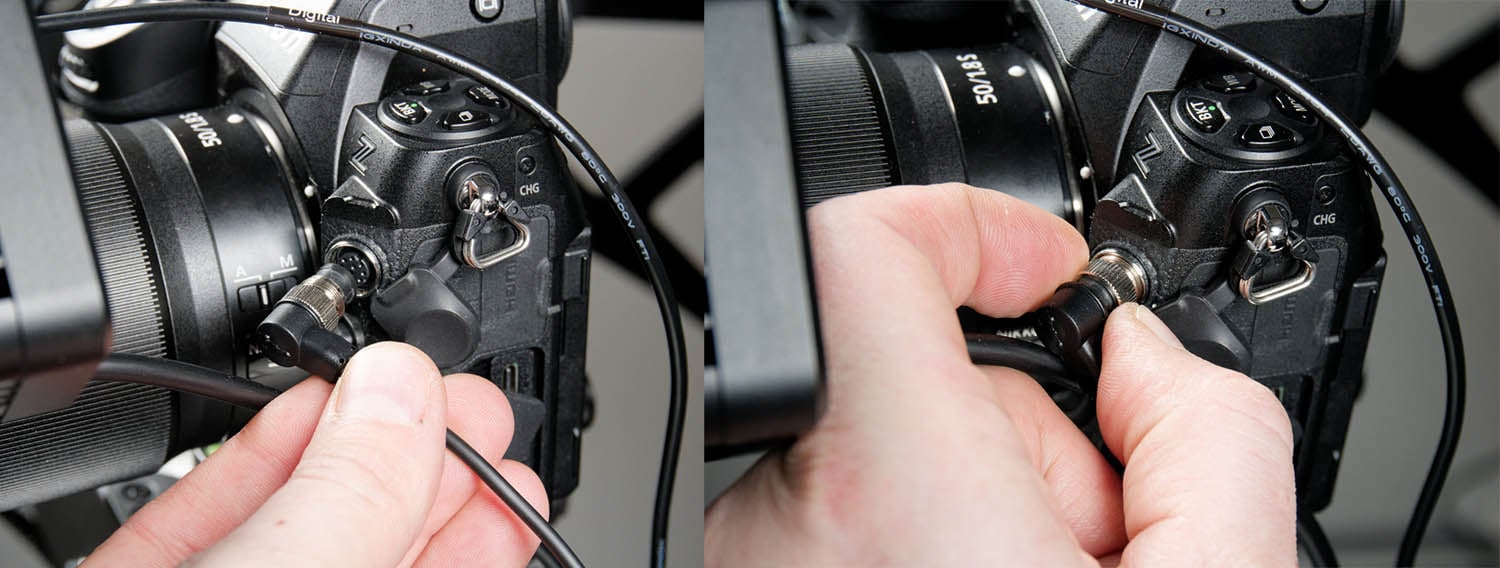

2. Connect the Trigger/Shutter Release Cable:

   • Attach and secure the trigger/shutter release cable to your camera (note that the example image is for Nikon; cable types and connector locations may vary for other brands).

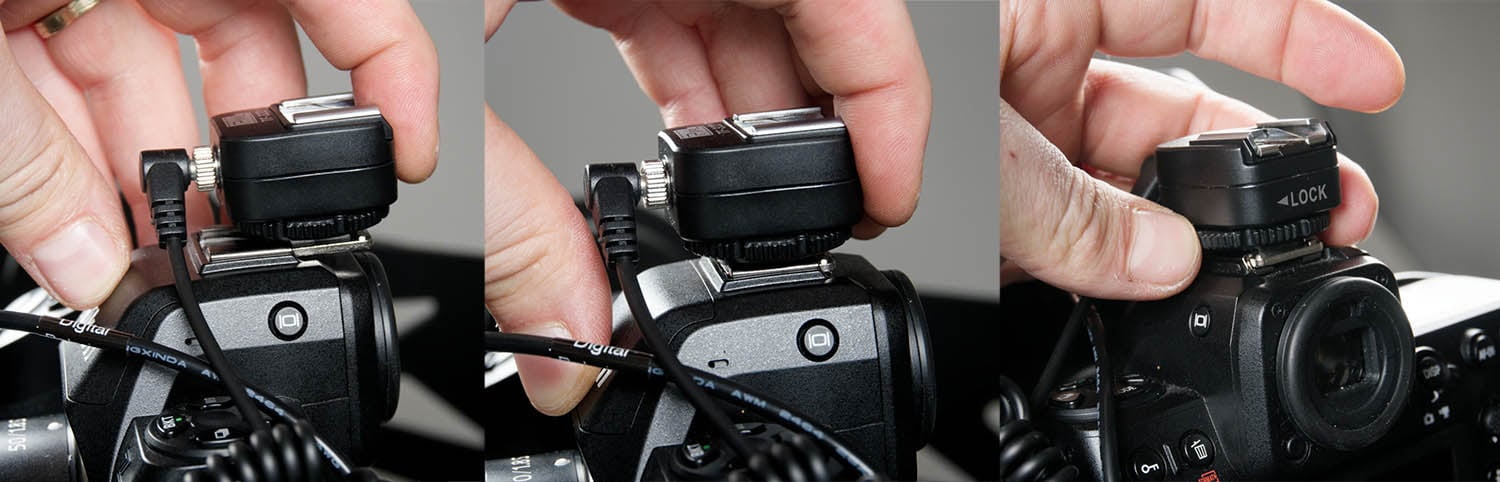

3. Install the Hotshoe Adapter:

   • Fully insert the hotshoe adapter onto your camera’s hotshoe.
   • Secure it by rotating the lock knob underneath the adapter.

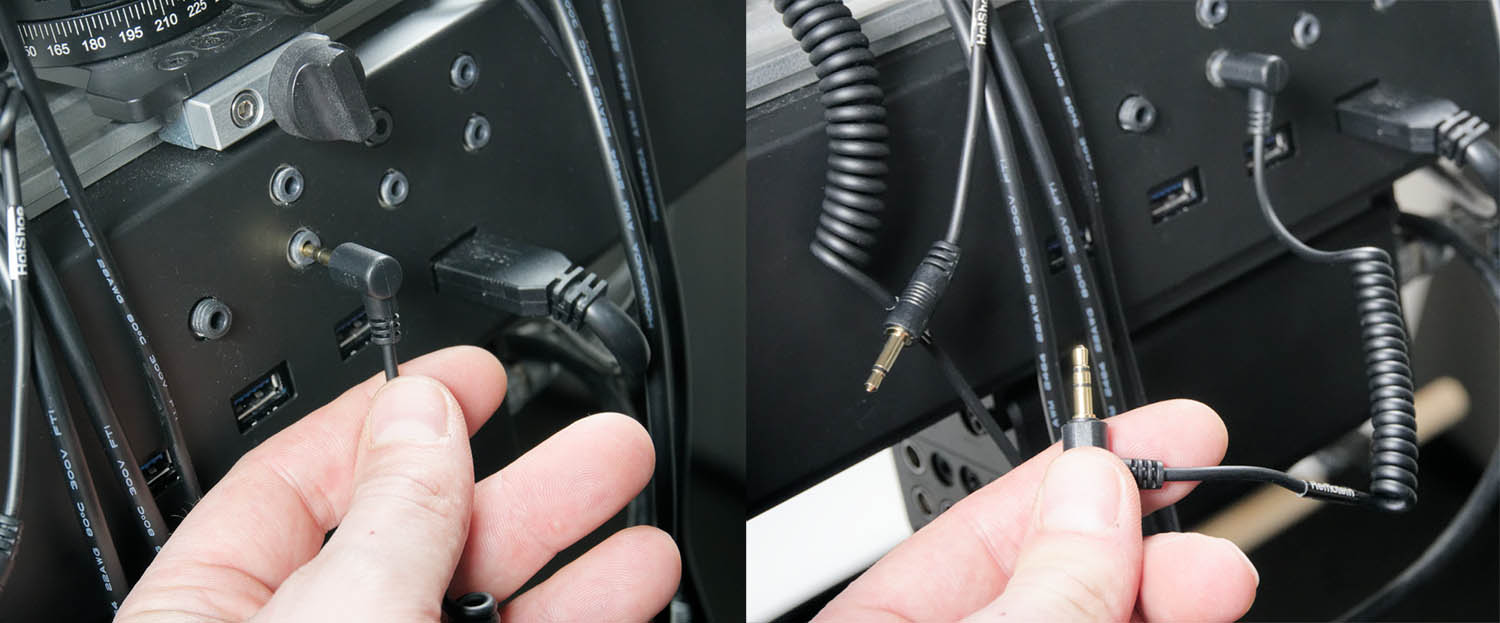

4. Connect the Remote Trigger:

   • Plug the remote trigger cable into one of the Camera Trigger ports located on the back of Arago’s Tilt-head.

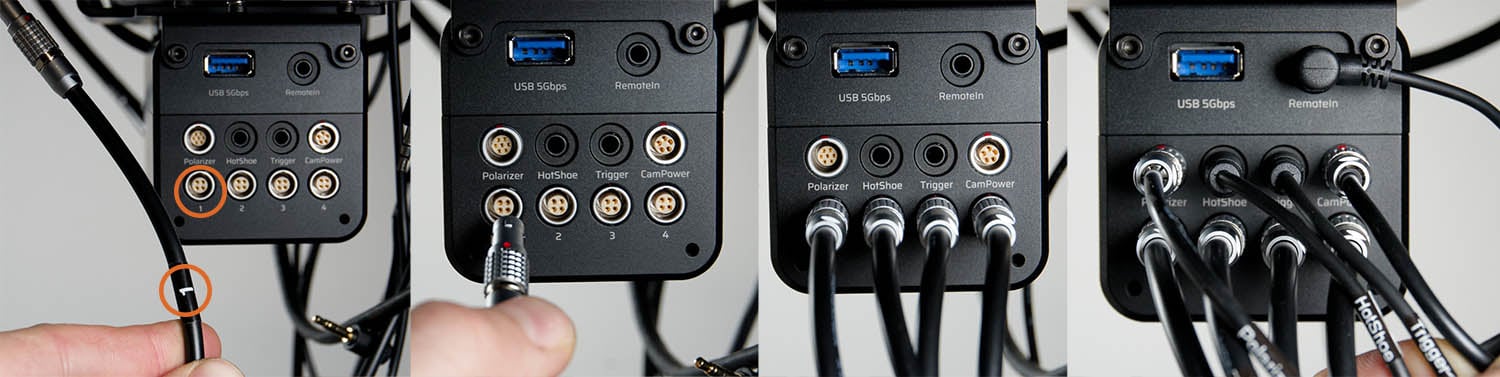

5. Finalize Cable Connections:

   • Connect all remaining cables to the Controller unit, matching each cable to the corresponding labeled port.

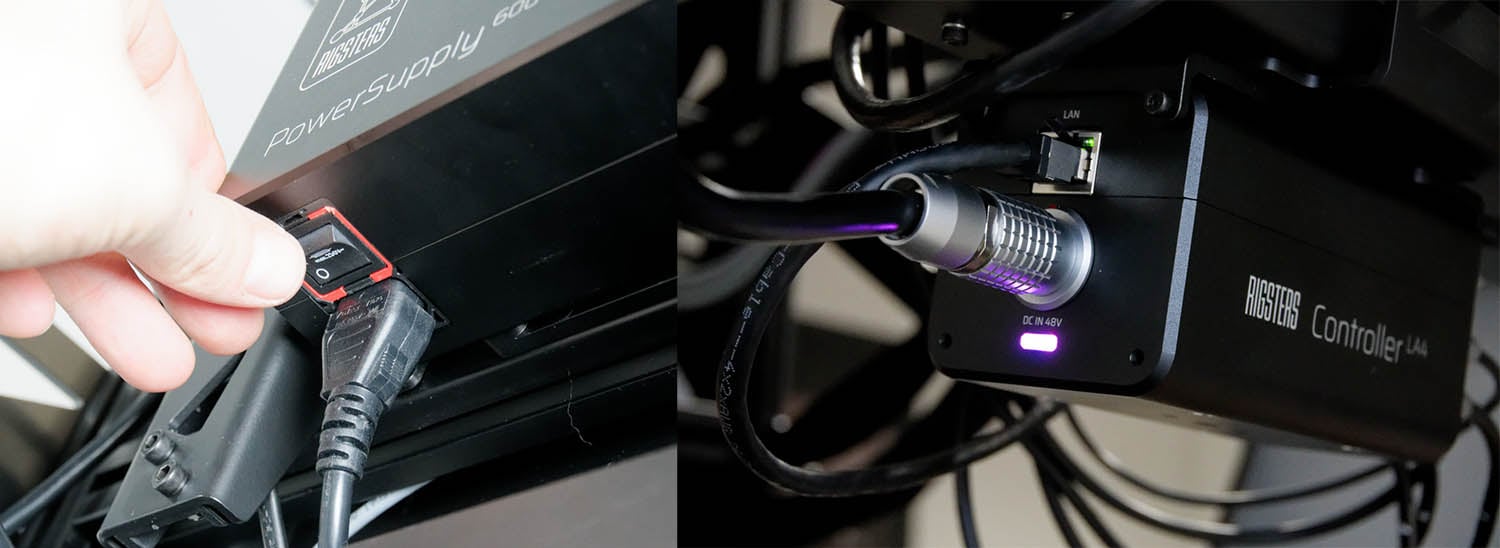

6. Power On and Verify Operation:

   • Turn on the LightArray system by switching to 1 the power button next to the PSU’s power input cable.
   • Verify a successful boot-up by observing the purple light on the side of the LA4 Controller unit.


Happy scanning!
